Chimney draft calculationsxls - Free download as Excel Spreadsheet xls PDF File pdf Text File txt or read online for free. Chimney Draft Chart pdf Chimney Area.
Https Www Vgb Org Vgbmultimedia Vgb Research Project No 379 Verifying Flue Gas Flow Rate Calculation P 13716 Pdf
However it is clear that in principle the super-chimney will facilitate heat exchange and given the enormous amount of air coming through the super-chimney it will have effect on the heat balance of the Earth atmosphere.
Chimney draft calculation xls. ContentsTypes of Steel Chimney Structure1. 15018 863 Chimney Construction for Low Medium and High Temperature Equipment 86301 Chimney. Chimney Design Solutions Forced Draft Direct Vent Atmospheric Draft Hood Draft Diverter Fan-Assisted Condensing Direct Vent High-Efficiency Fan-Assisted Static Pressure Temp.
Draft GASY outside AIRX inside 564 Pascals Draft AIRY outside GASX inside 557 Pascals EXCESS AIR FACTOR actual air flow ideal air flow 200 estimate Real air flow per time and mass of wood as above 1151 m3 Air flow per second 320E-03 m3sec Diameter of chimney 7500 mm Cross-sectional area of chimney 442E-03 100000 200 200 m2. Average temperature inside the chimney K T e. A duct of diameter 02 m goes from 1.
Chimney draughtdraft flow rate m 3 s C. Vol in cft VCG 21 - 92 21 - 100 CALCULATED LOADING CONDITION tonnes Cargo Loaded Actual SF Total Ballast Draft. The height of the hot air column from ground floor to outlet air duct above roof is approximately 8 mThe outside temperature is -10 o C and the inside temperature is 20 o C.
H - height of chimney m o - density outside air kgm 3 t i - chimney inside temperature o C t o - outside air temperature o C Chimney Draft Chart. Chimney draft depends on the following factors as mentioned below-Density of gases at the inlet of the chimney Flue gases density at the inlet of the chimney is dependent upon the temperature of flue gases entering the chimney. Chimney draft is required to draw the flue gases from the system and in order to prevent the backflow of gases the draft generated by chimney must be calculated accurately.
Calculate the air flow caused by natural draft in a normal family house with two floors. Sign Design Based on AISC 360-1016 ACI 318-19 and IBC 18073. Discharge coefficient usually taken to be from 065 to 070 dimensionless A.
In case the height calculated from the Eqn. Excel Spreadsheet for Chimney Draft Calculations Crispins Excel Spreadsheet for Chimney Draft Calculations New Dawn Engineering May 2005 The file is also attached for those who have created an account and logged in. Formula for burning wood.
11 is higher than the recommended height by CPCB then you go ahead with the calculated height or else you have to stick to the CPCB recommended height. It does not account for thermal losses to the chimney itself so the temperature should be taken approximately 12 along its length. Initial draft Dsplcum New draft Old Density New Density Trim Change.
Theoretical draft can be calculated using the following equation. CH14O06 105O2 376N2 CO2 07H2O 395N2 CHIMNEY DRAFT CALCULATOR AIR FACTOR actual air flowideal air. Assumed thickness of steel plate 14 mm Density of steel plate 784264 kgm3 Weight per unit cross-section of steel plate 10979696 kgm2 Thickness of lining 508 mm Density of Lining 176203 kgm3 Weight per unit cross-section of Lining 89511124 kgm2 Total weight per unit cross-section of chimney 199308084 kgm2 Weight per meter of height 190848939 kgm Moment due to wind load M.
External air temperature K. Calculation of number of super-chimneys needed to cool the atmosphere. D t 2554 B H 1 _ 1 T o T m Where.
MTC Dspl ton Change of Trim Old Trim New Trim on pp on draft marks crew stores Old Draft FWD Old Draft AFT New Draft FWD New Draft AFT HOLD FRAMES Vol in cum. Rise above Dew Point II IV III Negative - Positive 140 I APPLIANCE CATEGORIES The National Fire Protection Association NFPA classifies gas-utilization equipment. The spreadsheet is designed to calculate the burning of wood and the resulting draft.
Cross-sectional area of chimney m 2 g. It requires that the chimney temperature be measured. Example - Natural Draft.
Excel has a built-in function known as RADIANSangle where angle is the angle in degrees you wish to convert to radians. Floor to the outlet above the roof. Calculate Flue Gas Stack Diameter.
- Now you have to check out the recommended minimum chimney height by the Central Pollution Control Board CPCB. Dp ch 20 m 1292 kgm 3 1 - 273 K 473 K 981 ms 2 107 Pa. Chimney draft calculation xls.
Cubic Feet per Minute. Height of chimney m T i. Project No 4283 PRODUCT ENGINEERING DEPARMENT Fuel Bagasse-50 LOAD Process Data.
View STACK SIZEINGxls from CHEMISTRY 344 at Nanjing University. The draft in the chimney can be calculated with 3 as. Stack material Carbon steel PS 1010 Stack mounted on Ground Stack Height above the outlet ofGround L 3000 m 9843 ft Stack Diameter assumed D 270000 mm 10630 inches 886 ft Ambient temperature T 40 C 564 R Barometric pressure P 2992 inches.
AIR means the normal air around you. BTUH which is about Watts. Chimney Shape Square Circle.
There are many factors to analyze. Force producing the flow in gravity or natural draft chimneys is termed theoretical draft defined as the static pressure resulting from the differences in densities between a stagnant column of hot flue gases and an equal column of ambient air.
Natural Ventilation Natural Ventilation Calculation Of Rate Of
Https Www Arb Ca Gov Cc Capandtrade Allowanceallocation Boiler Efficiency Calc Pdf
Natural Ventilation Natural Ventilation Calculation Of Rate Of
Natural Ventilation Natural Ventilation Calculation Of Rate Of
Stack Sizeing Design Calculation Sheet For Boiler Stack Diameter Project Title 2 X 80tph 65 Barg 480 0c Client Al Moiz Industries Ltd Project No Course Hero
Stack Sizeing Design Calculation Sheet For Boiler Stack Diameter Project Title 2 X 80tph 65 Barg 480 0c Client Al Moiz Industries Ltd Project No Course Hero
Branch Duct Lisp For Autocad Free Lsp For Hvac Design
Natural Draught And Chimney Electrical4u
Stack Sizeing Design Calculation Sheet For Boiler Stack Diameter Project Title 2 X 80tph 65 Barg 480 0c Client Al Moiz Industries Ltd Project No Course Hero
Boilers Chimney Draft And Breeching Calculation Chimney Boiler
Https Www Trc Govt Nz Assets Documents Plans Policies Airplan Raqp Appendix8 Pdf
Stack Sizeing Design Calculation Sheet For Boiler Stack Diameter Project Title 2 X 80tph 65 Barg 480 0c Client Al Moiz Industries Ltd Project No Course Hero

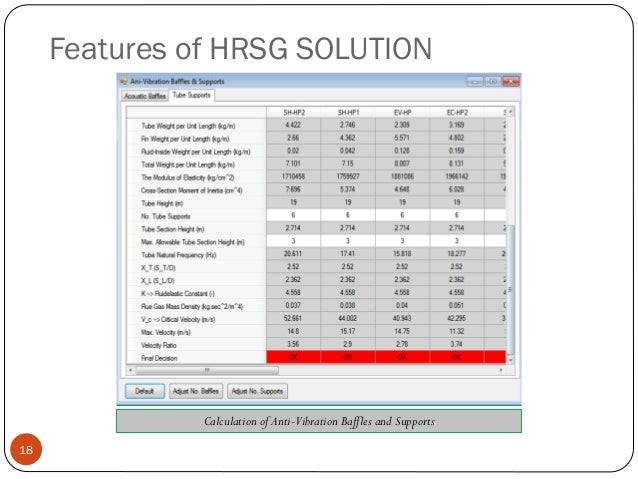

Hrsg Solution
